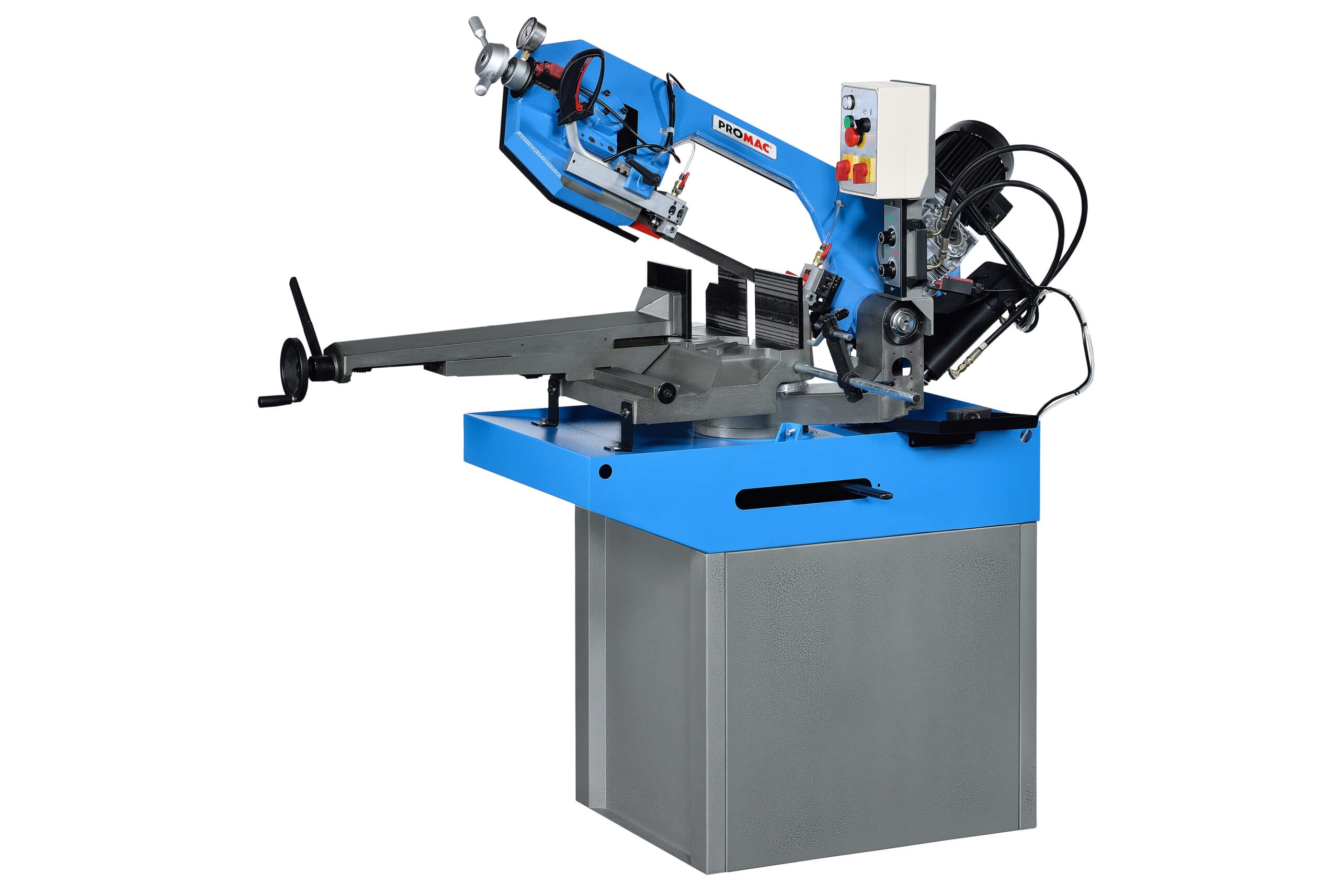

Promac SX_823DGB Manual Bandsaw

  • 225mm Round capacity
  • Dual-mitre 60° right and 45° left
  • Manual or servo assisted descent
  • 400v 3 Phase 1,1kw motor

SKU 2f305bb509d4 Categories , , Tag Brand:

Description

2-speed motor, Manual or servo-assisted lowering of the saw bow, With thermal protection against overload and emergency stop button, Right-hand and left-hand by means of bow rotation, Blade guides with rolling contact bearings, Including lubrication system, Blade tension gauge, Supplied with sawing band and pedestal View Manuals

Specifications

  • 225mm Round capacity at 90°
  • 200mm Square capacity at 90°
  • 240 x 160mm Rectangle capacity at 90°
  • Motor (V/kW) 400/1.1
  • Blade speed (m/min-1) 35/70
  • Blade dimension (mm) 2’456×27×0.9
  • Tilting head, tiltable by 60° right, 45° left
  • Vise opening (mm) 230
  • Working height (mm) 890
  • Dimensions (mm) 1’350×700×1’326
  • Weight (kg) 320
