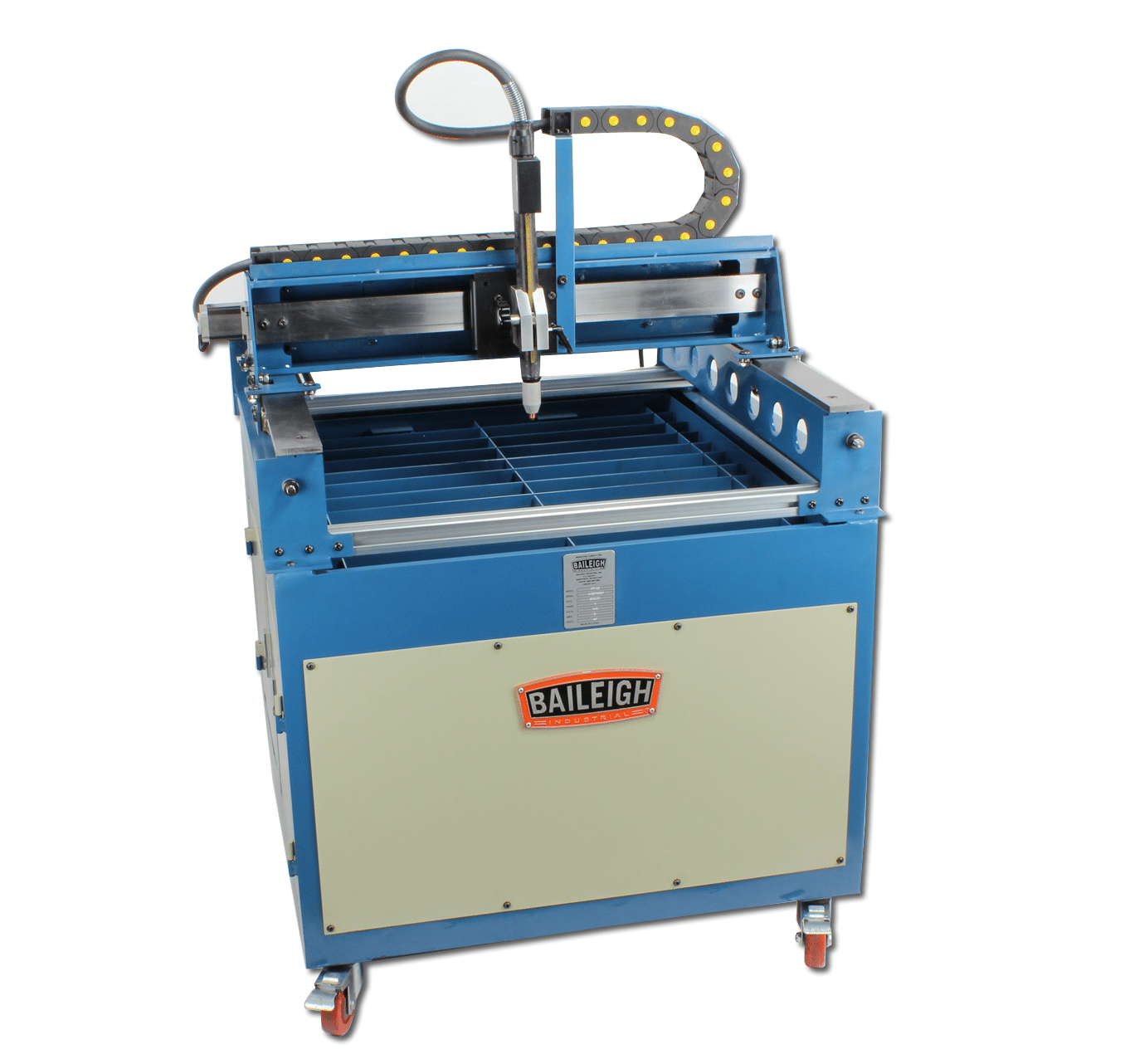

PT-22 PLASMA TABLE

  • 610mm x 610mm cutting area
  • Water Table
  • Design software included
  • Torch sold separately

SKU 2000474 Categories , Tag Brand:

Description

The PT-22 plasma table is not your normal 2 x 2 plasma cutting table. The PT-22 offers many features not found on competitor models, at a great price. The PT-22 comes fully assembled, no need to spend hours building hoping to have the alignment correct. A water bath is also part of the package, not an upgrade.

Operation of the table itself only requires 220 volt power so it will work at almost any fabrication site. The PT-22 also comes with two different types of torch holder, one for an automated system and one that is configurable to any hand held torch on the market.

The PT-22 comes with an easy to use design software package that allows the user to design or plot out a job on any computer and load the plasma table via USB stick. The plasma cutting table comes with a handheld pendant with jog controls for the X and Y axes, as well as program start and stop controls.

The PT-22 plasma table is perfect for anyone getting into plasma cutting.

Call the Baileigh Industrial sales team for further information.

Specifications

Item Number PT-22
Table Dimensions 29″ x 31″
Speed Number Infinite
Table Load Capacity 3/4″ Mild Steel
Capacity Depends on Plasma System Chosen
Drive Stepper Motor
Power 220V
Shipping Weight 550 lbs.
Shipping Dimensions (Inches) 36″ x 36″ x 48″

* specifications subject to change without notice.
