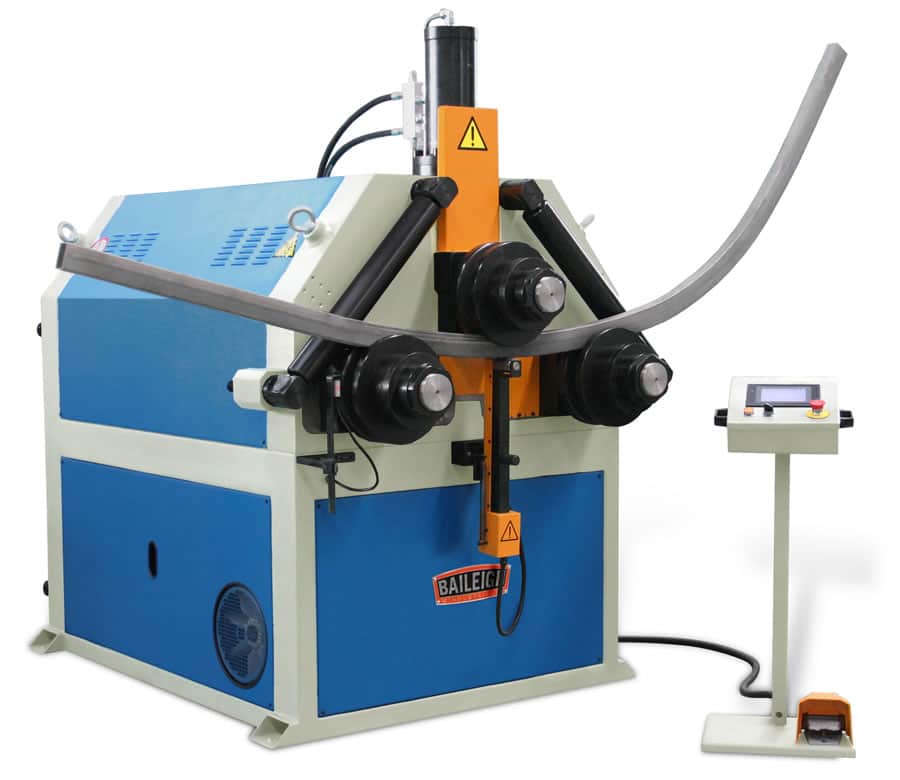

Baileigh R-CNC150 CNC Roll Bender

  • Foot pedal operation
  • 141mm Ø 6.5mm round tube capacity
  • Single pinch
  • Full CNC – touch screen

SKU 2000303 Categories , , Tag Brand:

Description

The largest in its class, the R-CNC150 roll bender is capable of bending up to 5” schedule 40 pipe. This pyramid-style bending machine will enable the operator to create material calibrations for easy programming of multi-radius parts. With four position-interchangeable bottom rolls, the R-CNC150 provides increased control and flexibility when bending complex extrusions for the window and door industry for example. This feature helps to decrease the ovality when bending round tube in the furthest position, while also allowing for a decrease in minimum radius when using the machine in its closest setting.

Multiple speeds on both X and Y axes provide the user with the ability to create elaborate shapes with smooth transitions between segments, and with the photocell lens each part will begin and end at the same place every time.

Designed to work in either horizontal or vertical positions, this machine offers the ultimate in control.

To learn more please contact our sales team directly and we will be happy to help.

40 programs
24 different parts (segments) per program
75 profile calibrations
2 Speeds (rotation of the rolls)
4 Speeds (Top roll movement)
Top roll movement can be progressive* or direct**

*Progressive – Top roll go to position with profile moving.

**Direct – Top roll go to position with profile stopped.

Specifications

Item Number R-CNC150
Country of Manufacture Portugal
Driven Rolls 3
Roll Adjustment Hydraulic
Pipe Capacity Size: 5″ (sch. 40) / Min. Dia.: 78″
Round Tube Capacity Size: 5.875″ (.120″) / Min. Dia.: 102″
Square Tube Capacity Size: 4.5″ (.25″)
Flat Bar Easy Way Size: 6.25″ (1.5″) / Min. Dia. 48″
Flat Bar Hard Way Size: 5.5″ (.75″) / Min. Dia.: 58″
Angle Iron Capacity Size: 4″ (.50″) / Min. Dia.: 56″
Shaft Diameter 3.93”
Shaft Center Distance Adj. (lower rolls)
Upper Roll Dia. 6.693″
Lower Roll Dia. 6.693″
Motor 14.75 hp
Pinch Single with Interchangeable Bottom Rolls
Digital Readout Yes
Power 220V / 3-phase
Shipping Weight 6,063 lbs.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions L x W x H 75″ x 55″ x 75″

* specifications subject to change without notice.
