FE-1200 Portable Fume Extractor

  • Heavy duty welding fume extractor
  • Includes 8″ x 10′ extractor arm
  • 1110 CFM
  • HEPA filter

£4,654.00Excl. VAT + Delivery

SKU 2039040 Categories , Tag Brand:

Description

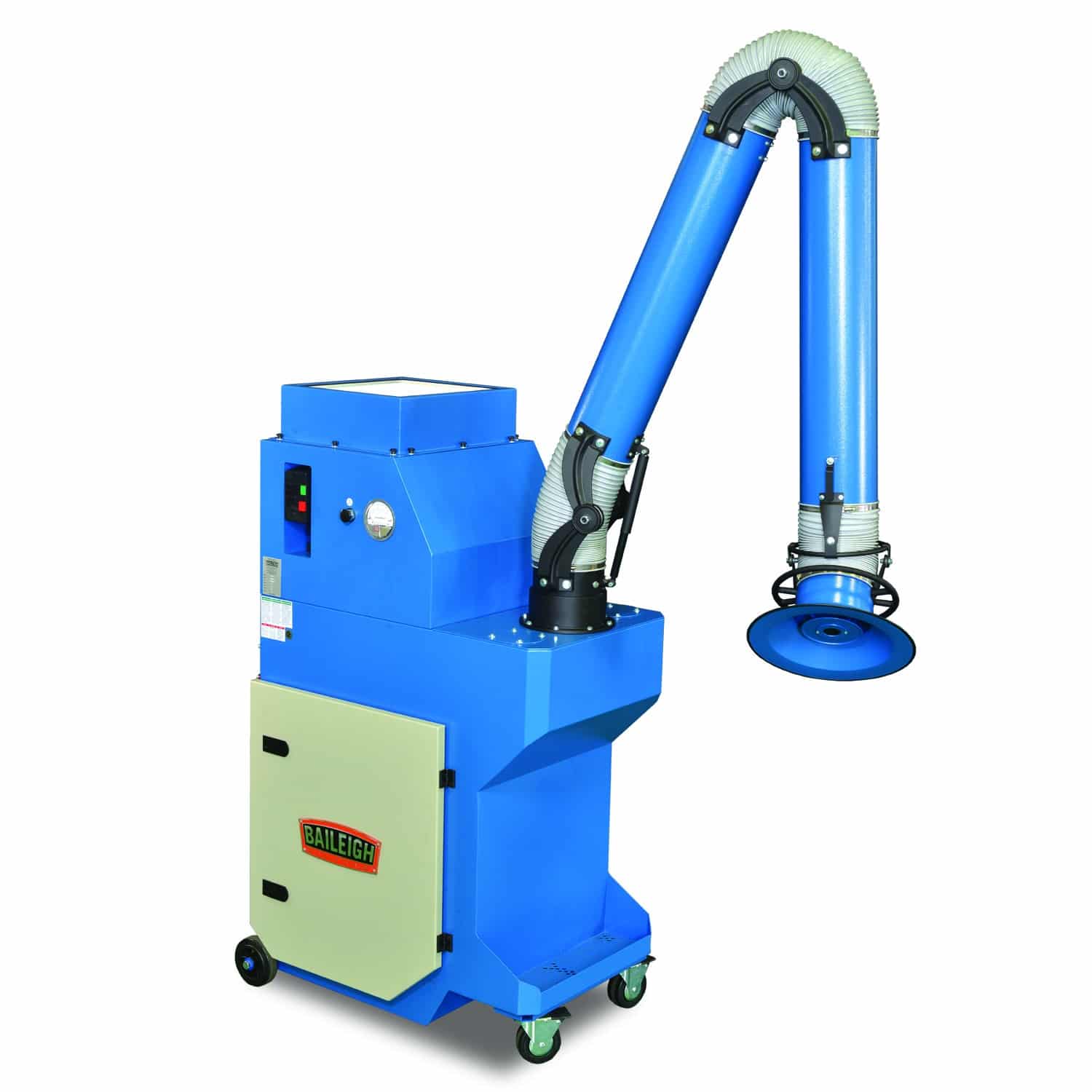

Looking for a fume extractor that can really remove fumes at a high rate. Look no further than the Heavy Duty Portable Fume Extractor – FE-1200 from Bailegih Industrial. Fume extractors are an important part of any welding shop. They help keep the areas clean and the air the workers breathe safe. The FE-1200 fume extractor is a portable unit that has many of the feature that most shops are looking for.

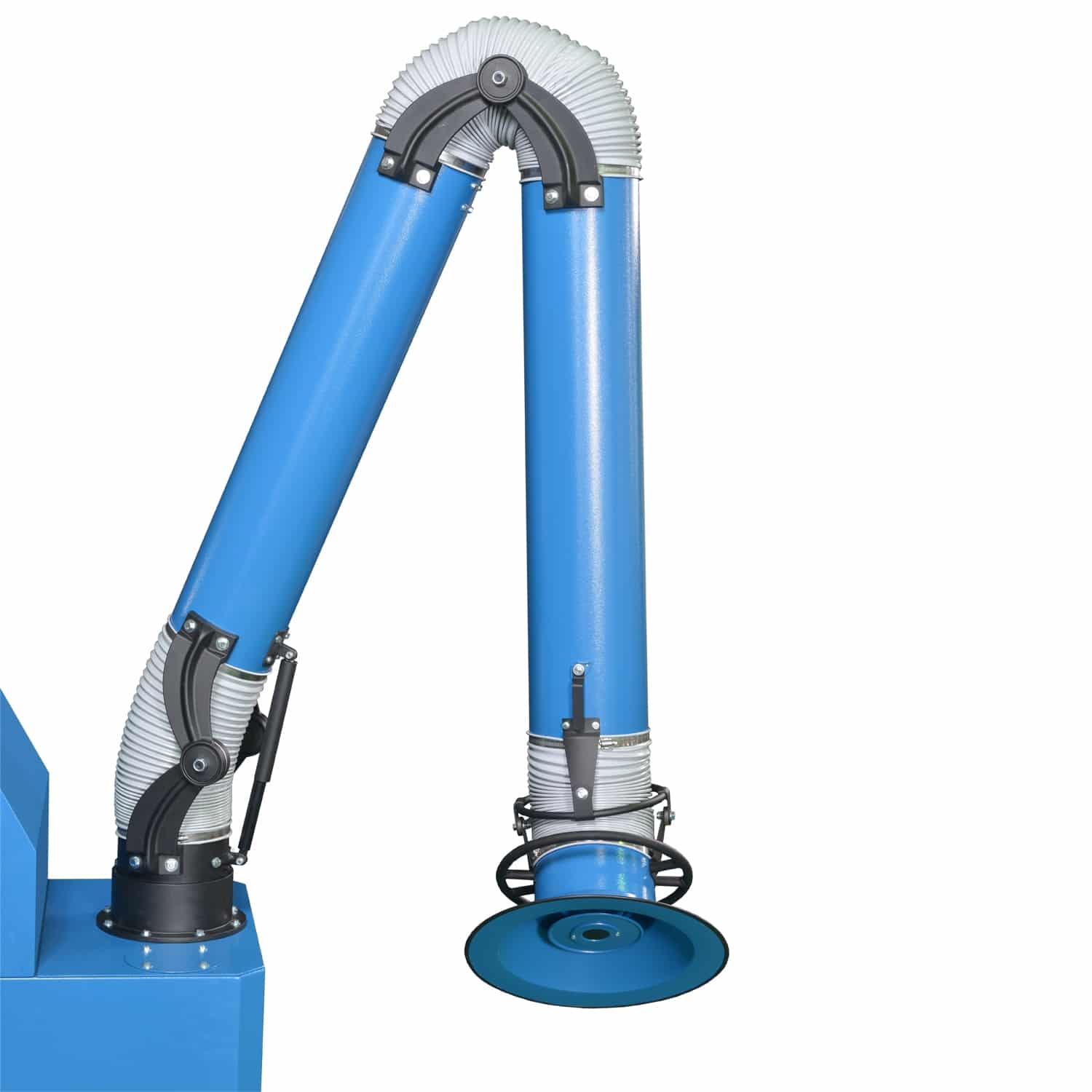

Includes 8″ x 10′ extractor arm
1.5 hp
1110 CFM

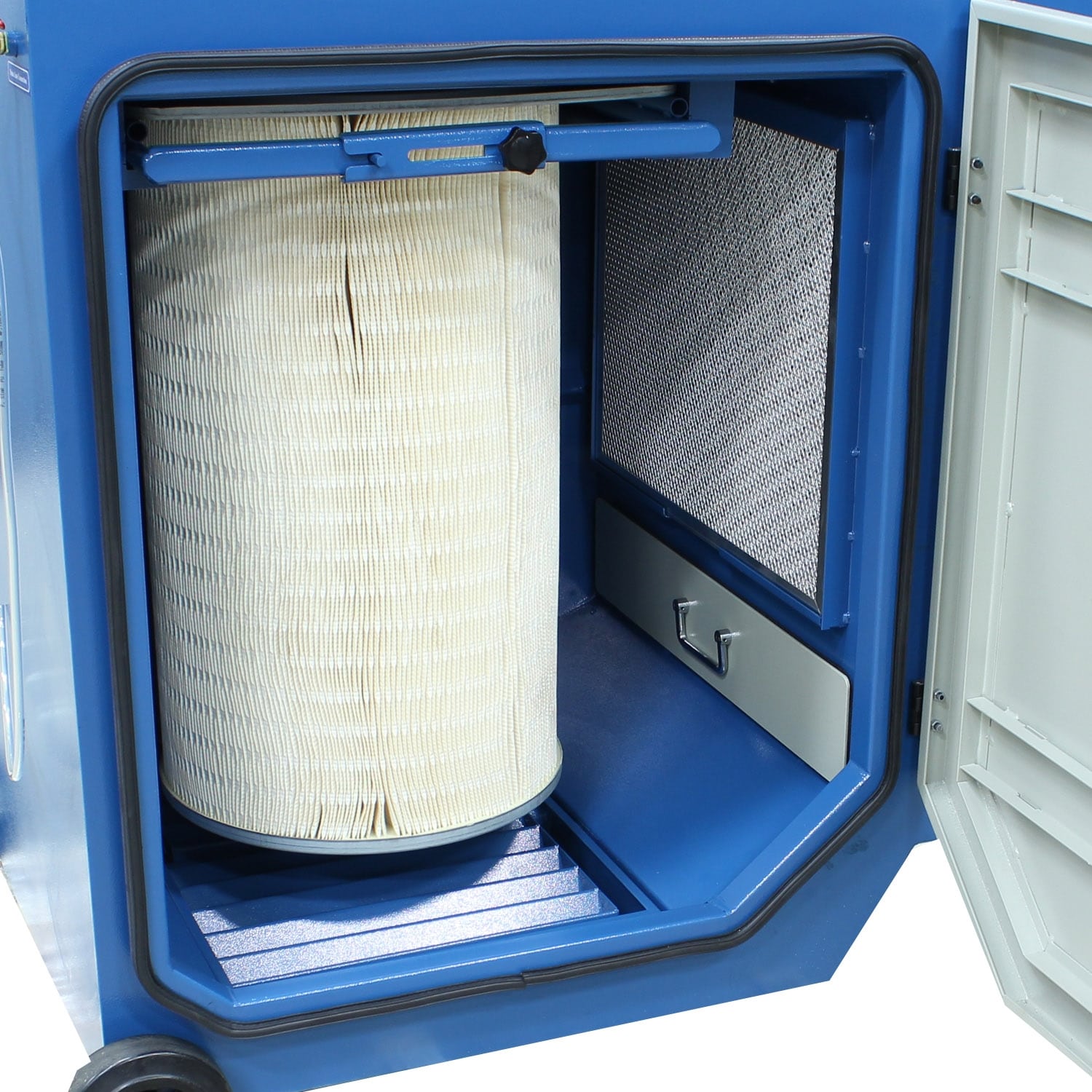

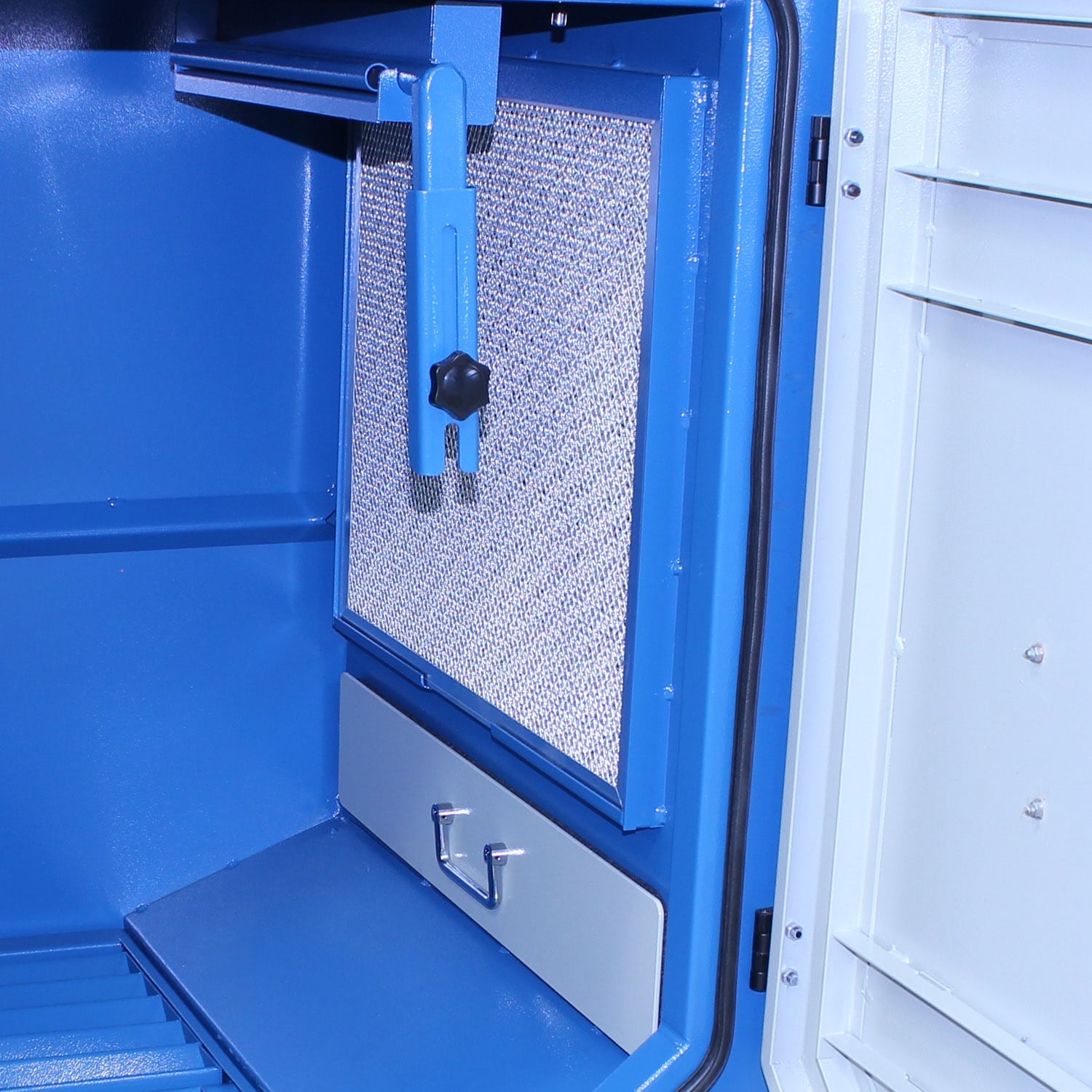

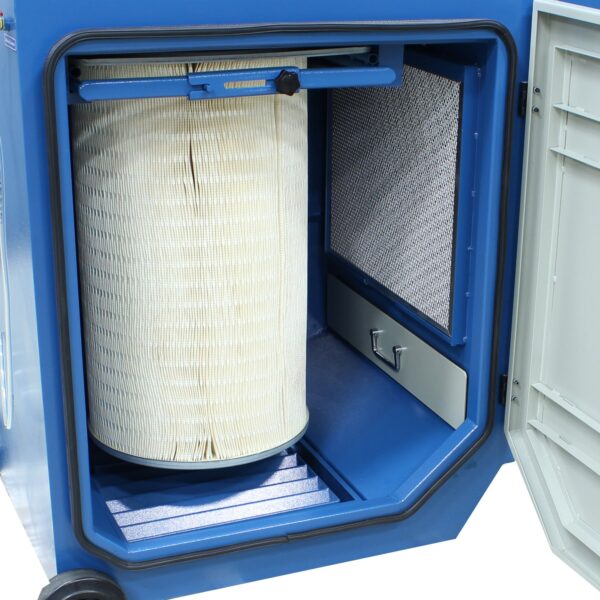

3 stage filter – 1. Aluminum mesh – 2. Fire resistant cartridge filter – 3. HEPA filter

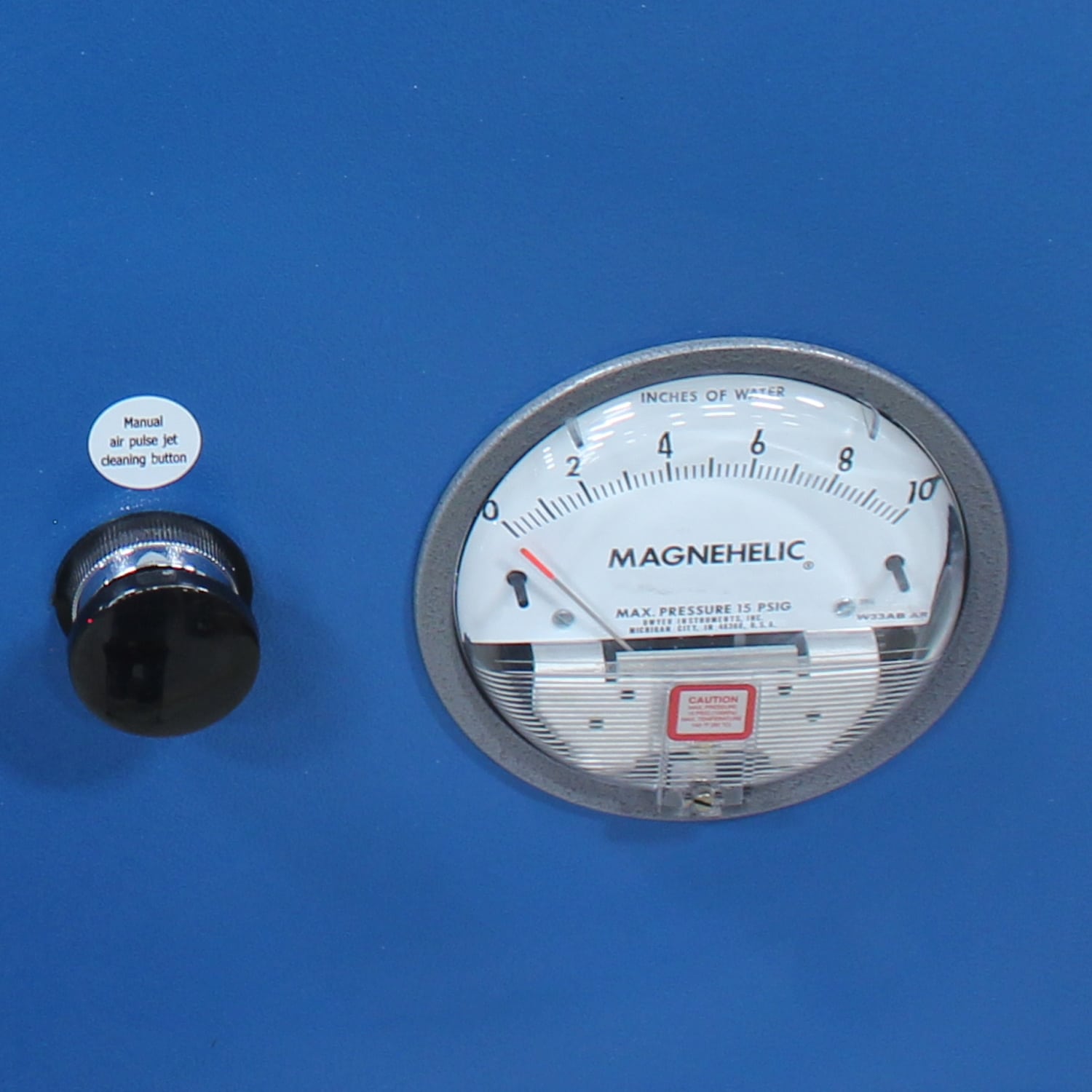

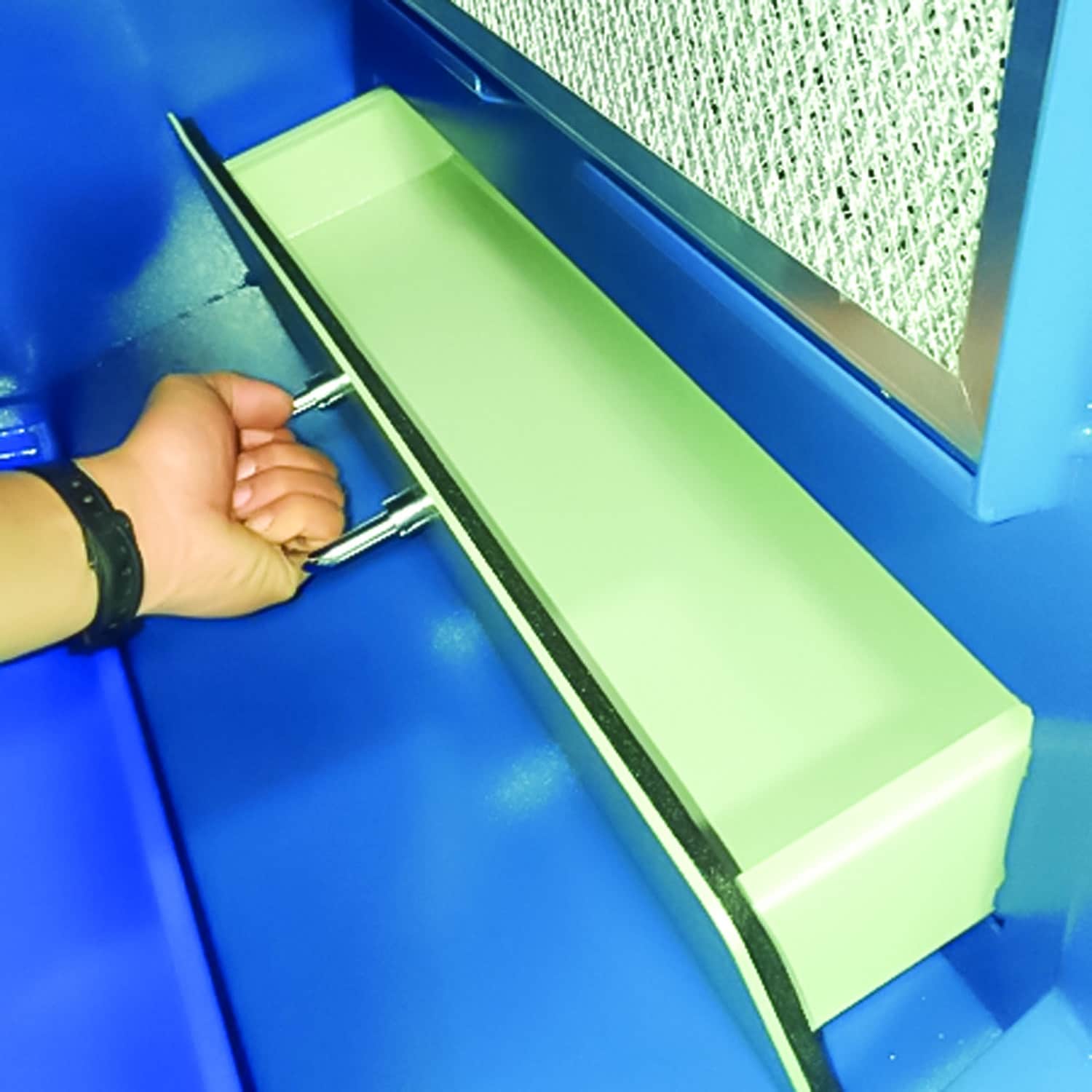

Air pulse cleaning – When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (the debris falls into a removable pan for easy cleanout). The extractor can now be turned on and work resumed
Portable
Full steel construction
CSA – U.S. certified
Tool-less filter maintance
220V

Additional information

Weight 362 kg

Specifications

Item Number FE-1200
Country of Manufacture Taiwan
Inlet Size 8″
CFM 1110
Motor Hp 1.5
Filter Type Three Stage (Aluminum mesh – Polyester Teflon Coated Cartridge with Pulse Clean – HEPA filter)
Number of Filters 3
Filter Size Aluminum mesh(21.25″ x 17.25″ x 7/8″) – Polyester Teflon Coated Cartridge with Pulse Clean(Ø11.2″ x 13″ L) – HEPA filter(18″ x 20″ x 5.9″)
Power 240V
Shipping Weight 800lbs
Extractor Arm Dimensions 8″OD x 10′ length
Shipping Dimensions (Inches) 69x44x36 & 60x44x80

* specifications subject to change without notice.
